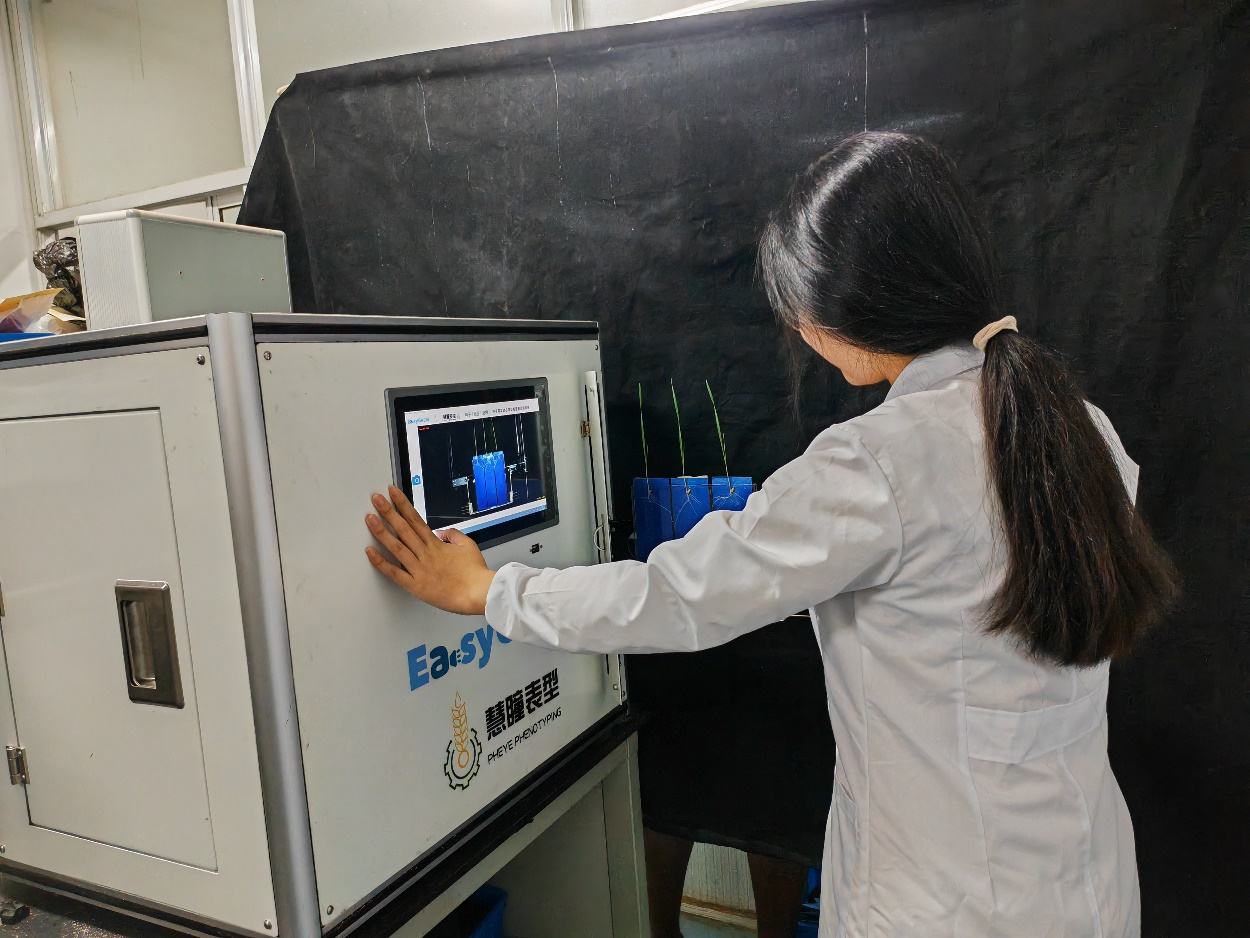

LK-1840 In Situ Phenotypic Monitoring System for Seed Germination Dynamics

LK-1840 In situ phenotypic monitoring system for seed germination dynamics

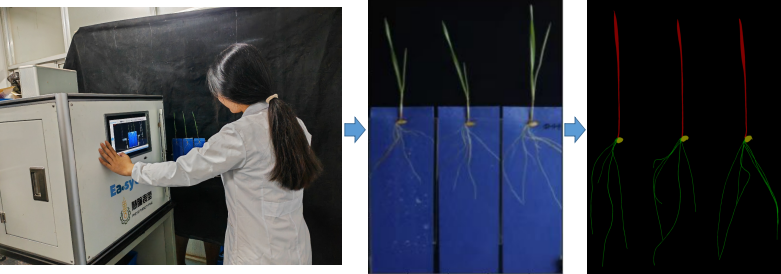

LK-1840 Seed Germination Dynamic In-situ Phenotyping Monitoring System is a fast and high precision plant seed germination dynamic phenotyping monitoring equipment, which integrates machine vision, digital image processing and other advanced technologies, and provides a new type of high-efficiency means of detection for all kinds of plants in the field of seed germination-related research. It can quickly and accurately obtain a number of indicators such as seed germination rate, germination potential, number of seed primordial roots, maximum radicle length, total root length, root angle, surface area, volume, radicle length, radicle and radicle growth rate and so on during seed germination. The data analysis software can monitor the seed germination status in real time and store the data in EXCEL for researchers to analyse.

Technical Specifications

Main Configurations

• Imaging unit pixel size: 14.8 µm
• Imaging unit type: 30 megapixel HD camera
• Size: 800*300*400mm (LWH)
• Power supply: single-phase 220VAC
• Software: online control, image processing, data analysis and storage
• control unit: Windows PC control

Main performance parameters

• Power: 50W
• Weight: 10Kg
• Working temperature: -10℃~60℃;
• Relative humidity: 30%~80% non-condensing;
• Flux:1000seeds/2h
• Operating range: single seed scale;
• Data format: jpg, png, etc;
• resolution: 6960×4640, 4800×3200, 3472×2320
