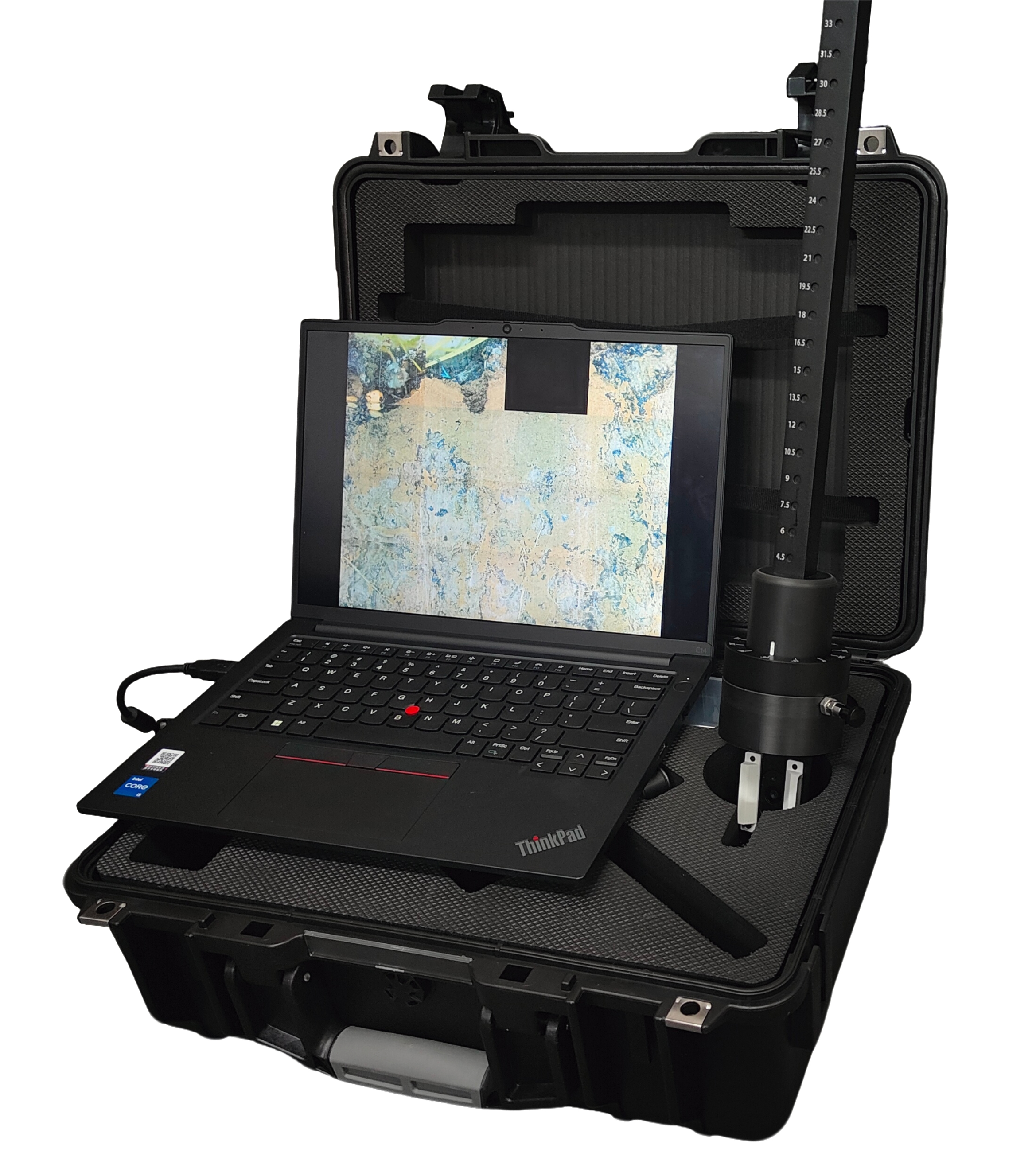

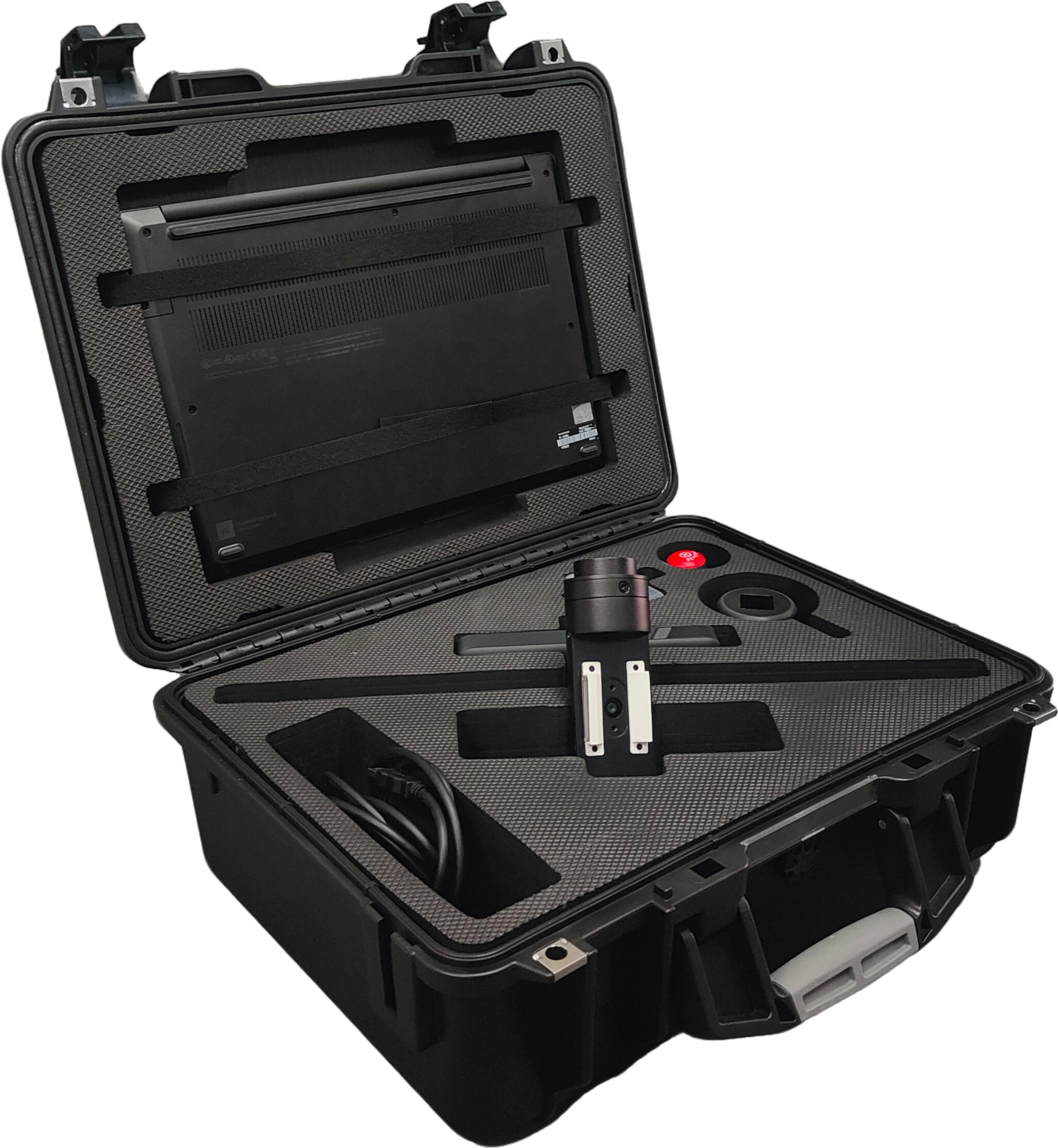

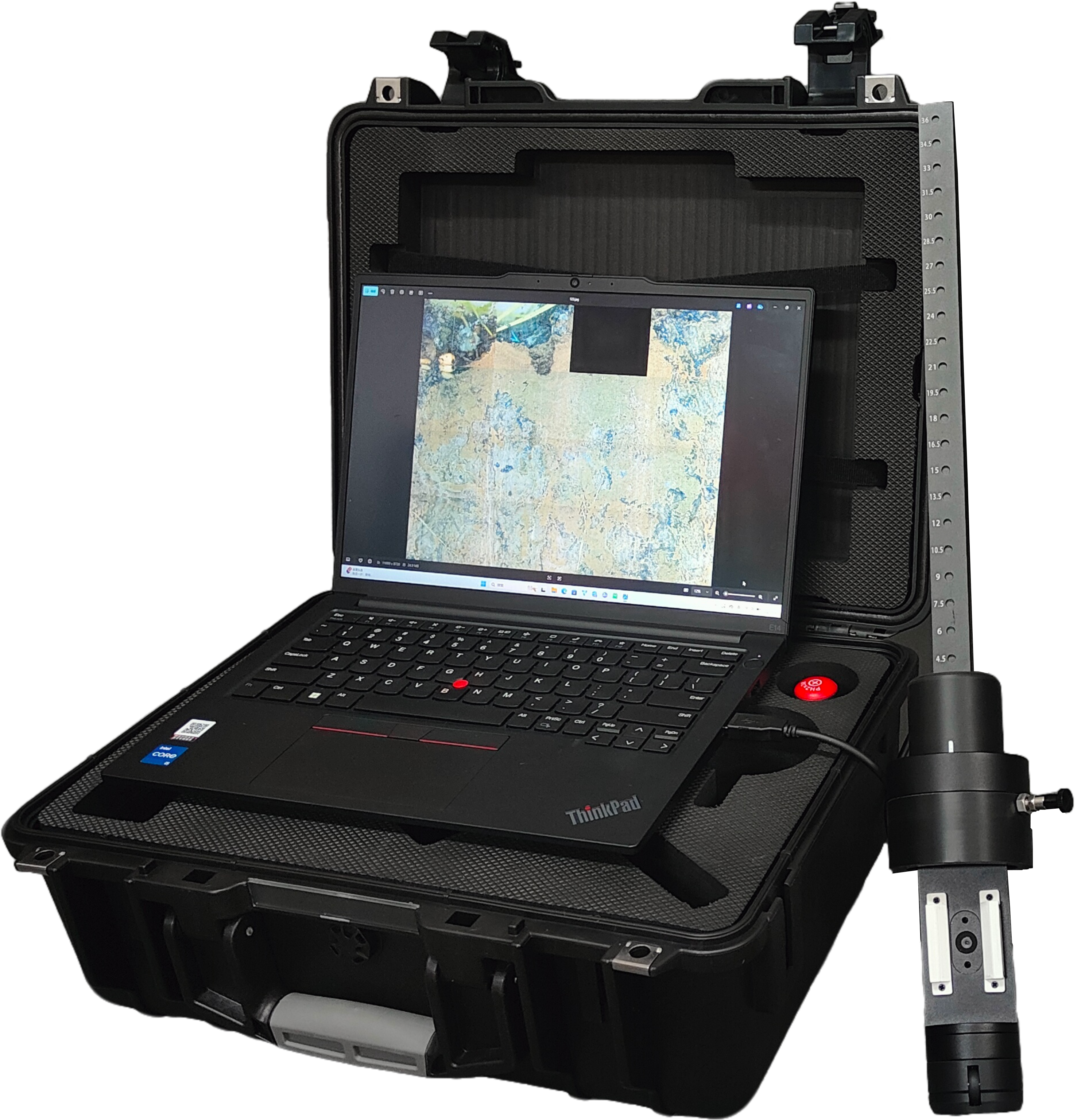

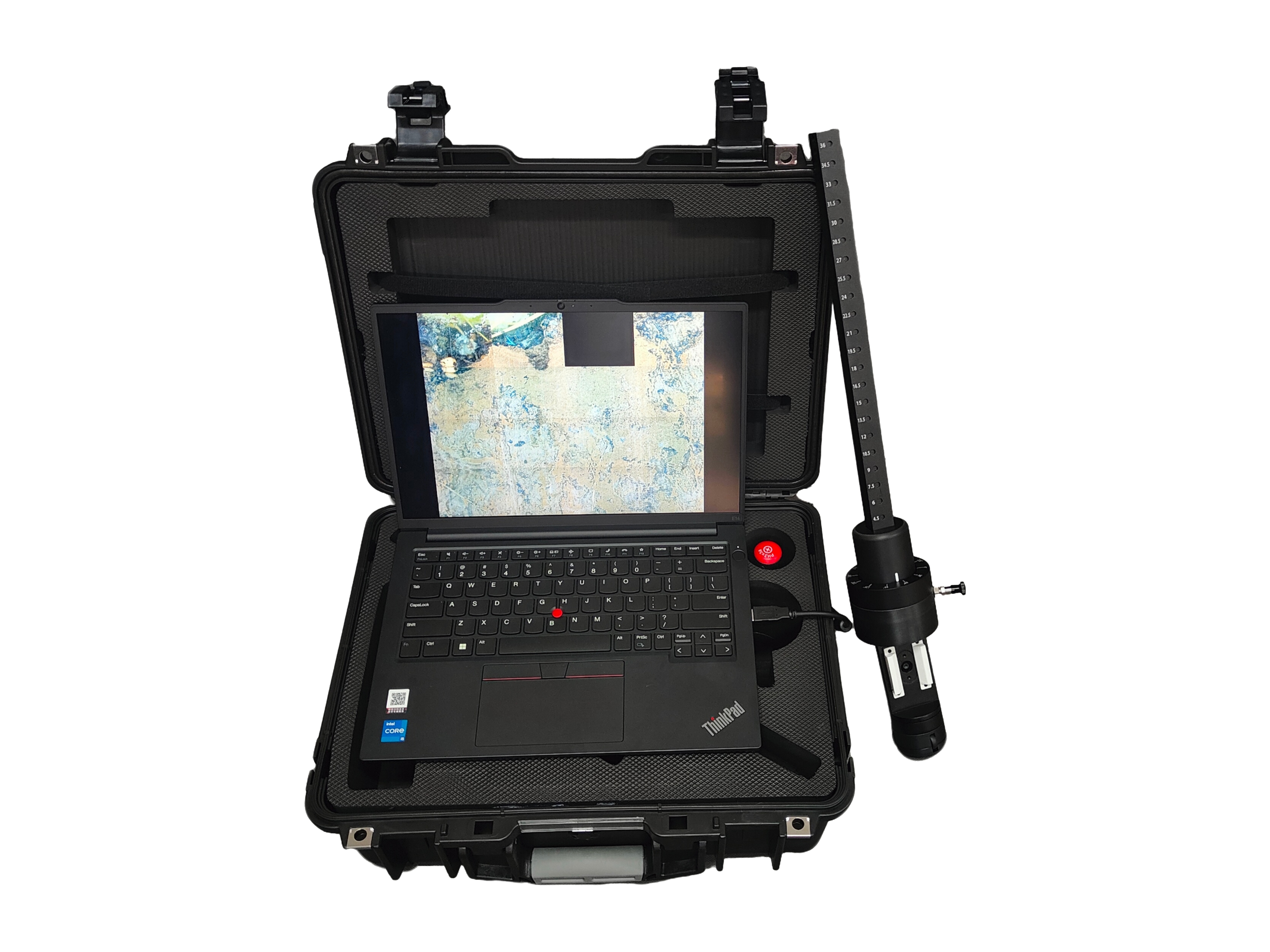

LK-1450 Narrow-Tube Multispectral Root Analyzer is based on minirhizotron technology and multispectral imaging technology, enabling in-situ acquisition of high-definition images of plant roots. With its compact main unit design, it is particularly suitable for high-definition multispectral imaging of plant root structures in confined spaces. By embedding transparent minirhizotron tubes in the soil and utilizing an in-situ observation window, the system allows long-term fixed-point monitoring of roots (including root nodules) without disturbing the soil structure or the natural root growth environment. Leveraging multispectral signals (reflection, transmission, and radiation characteristics), it captures root features; through different spectral combinations, it accurately distinguishes live roots from dead roots and extracts key information such as root architecture and distribution patterns. With its supporting professional analysis software, the system can extract and analyze multiple critical parameters of plant roots. This provides researchers in fields such as plant root ecology, stress tolerance, and abiotic stress with detailed data on underground root growth, facilitating in-depth scientific research.
LK-1450 Narrow-Tube Multispectral Root Analyzer is based on minirhizotron technology and multispectral imaging technology, enabling in-situ acquisition of high-definition images of plant roots. With its compact main unit design, it is particularly suitable for high-definition multispectral imaging of plant root structures in confined spaces. By embedding transparent minirhizotron tubes in the soil and utilizing an in-situ observation window, the system allows long-term fixed-point monitoring of roots (including root nodules) without disturbing the soil structure or the natural root growth environment. Leveraging multispectral signals (reflection, transmission, and radiation characteristics), it captures root features; through different spectral combinations, it accurately distinguishes live roots from dead roots and extracts key information such as root architecture and distribution patterns. With its supporting professional analysis software, the system can extract and analyze multiple critical parameters of plant roots. This provides researchers in fields such as plant root ecology, stress tolerance, and abiotic stress with detailed data on underground root growth, facilitating in-depth scientific research.
Key Features
Main Parameters
|
Main Unit |
Design: Cylindrical, enables 360° blind-spot-free imaging with adjustable angle and depth |
|
Dimensions (D×L): 47 mm × 165 mm |
|
|
Unit Weight: 345 g |
|
|
Image Capture Speed: ≤1 second/image |
|
|
Imaging Area: 15 × 14.92 mm |
|
|
Camera parameters: Focal Length: 3.432 mm; Field of View: 88°; Aperture: F2.0; Sensor: 1/2.8-inch CMOS; Resolution: 16 Megapixels |
|
|
Light source: Red: 620-625 nm; Green: 521-524 nm; Blue: 467-470 nm; White: 6000-7000 K;UV: 395 nm; All five colors feature stepless brightness adjustment，Power: 2 W; Filter: Frosted acrylic with ≥60% light transmittance |
|
|
Minirhizotron Tube Specifications |
Outer Diameter: 57 mm, Inner Diameter: 51 mm, Wall Thickness: ≤3 mm, Length: 100 cm (customizable) |
|
Minirhizotron Tube Material |
Imported PMMA material, Light Transmittance: 92% (visible light absorption <0.05%; @3 mm thickness), Refractive Index: ≈1.491, Tensile Strength: ≥110 MPa (-40°C); 72 MPa (30°C) |
|
Positioning Ruler |
Aluminum material, Total Length: ~1.2 m, Standard positioning hole spacing: 15 mm, Maximum of 3 rulers can be connected |
|
Control Software |
Built-in curvature correction, Real-time preview, Stepless adjustment of light type and brightness, Automatic delayed shooting and voice prompts for convenient single-person operation |
|
Analysis Software |
Functions: Image stitching, analysis, rotation, multi-language support, Measures single-root and total root parameters (length, radius, surface area, root tip count, etc.), Calculates turnover rate and root life cycle |
|
Power Supply |
USB port powered |
|
Data Transfer |
USB transmission, Stores data on laptops, tablets, or MUPCs |
|
Operating System |
Compatible with Windows 64-bit OS |
|
Operating Environment |
Temperature: 0 - 50°C, Relative Humidity: 0 - 100% RH (non-condensing) |
|
Installation Tool |
Drilling Diameter: ~6 cm, Drilling Depth: ≥100 cm (customizable) |
Basic configuration
Manufactured : Eco-mind, China
