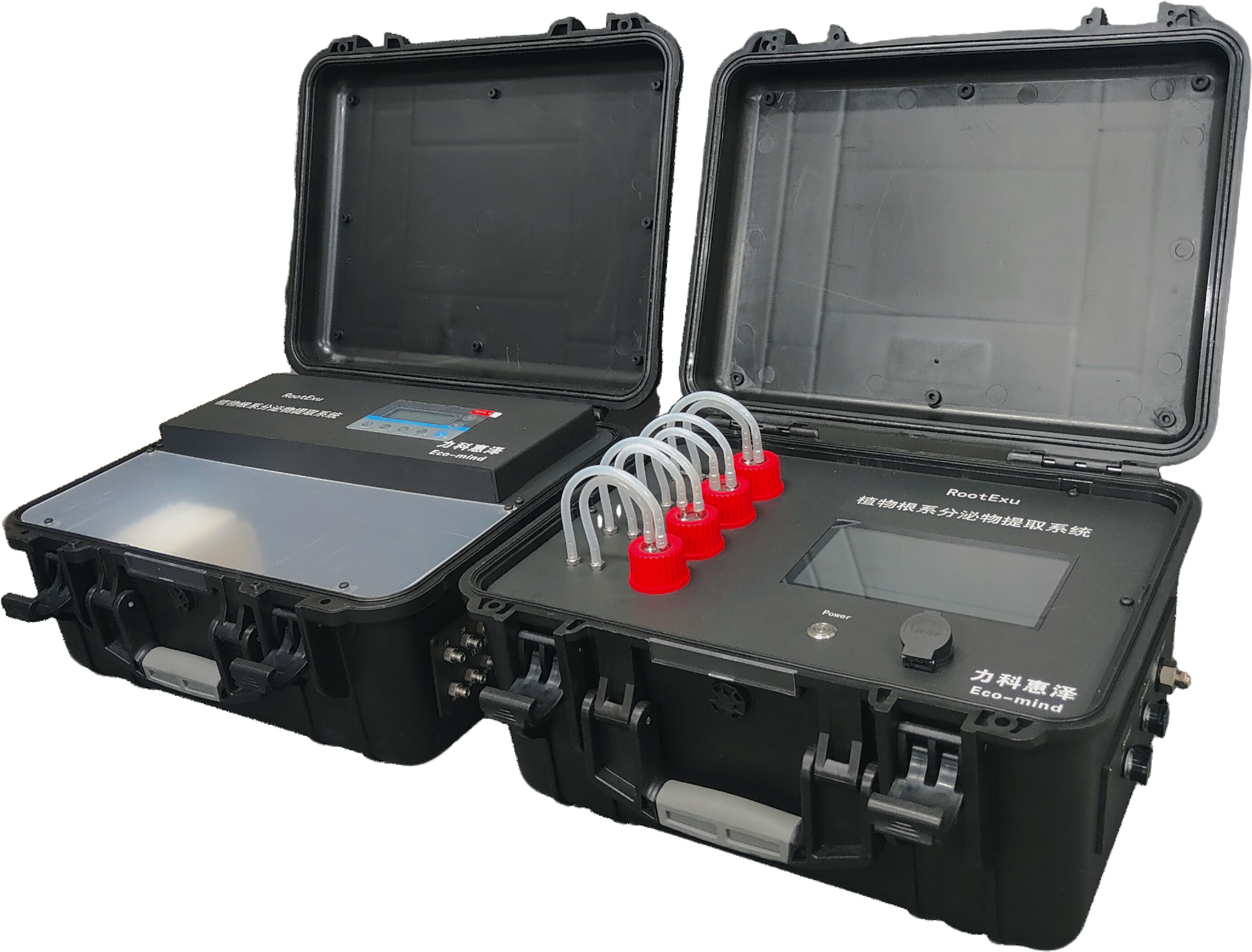

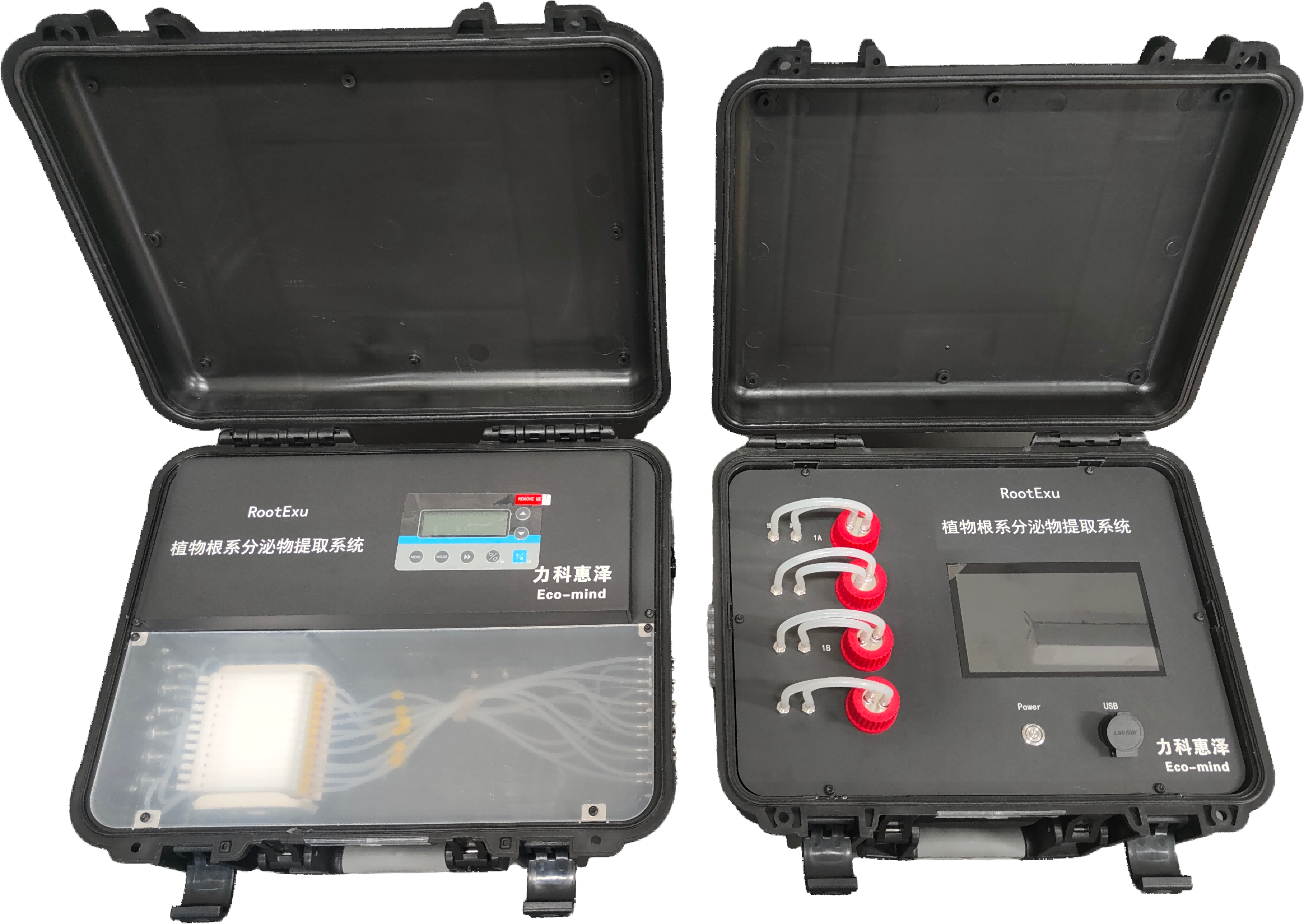

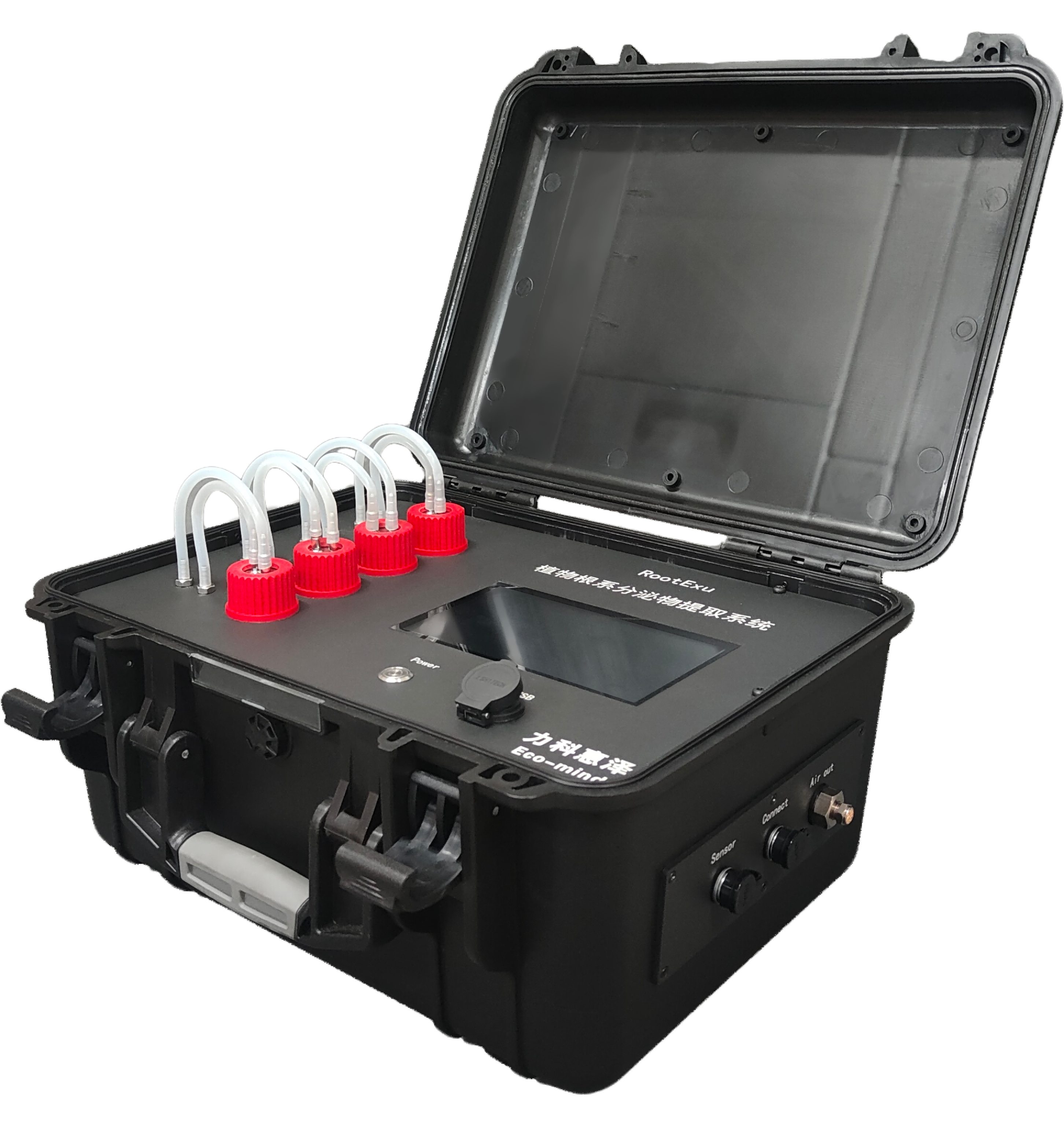

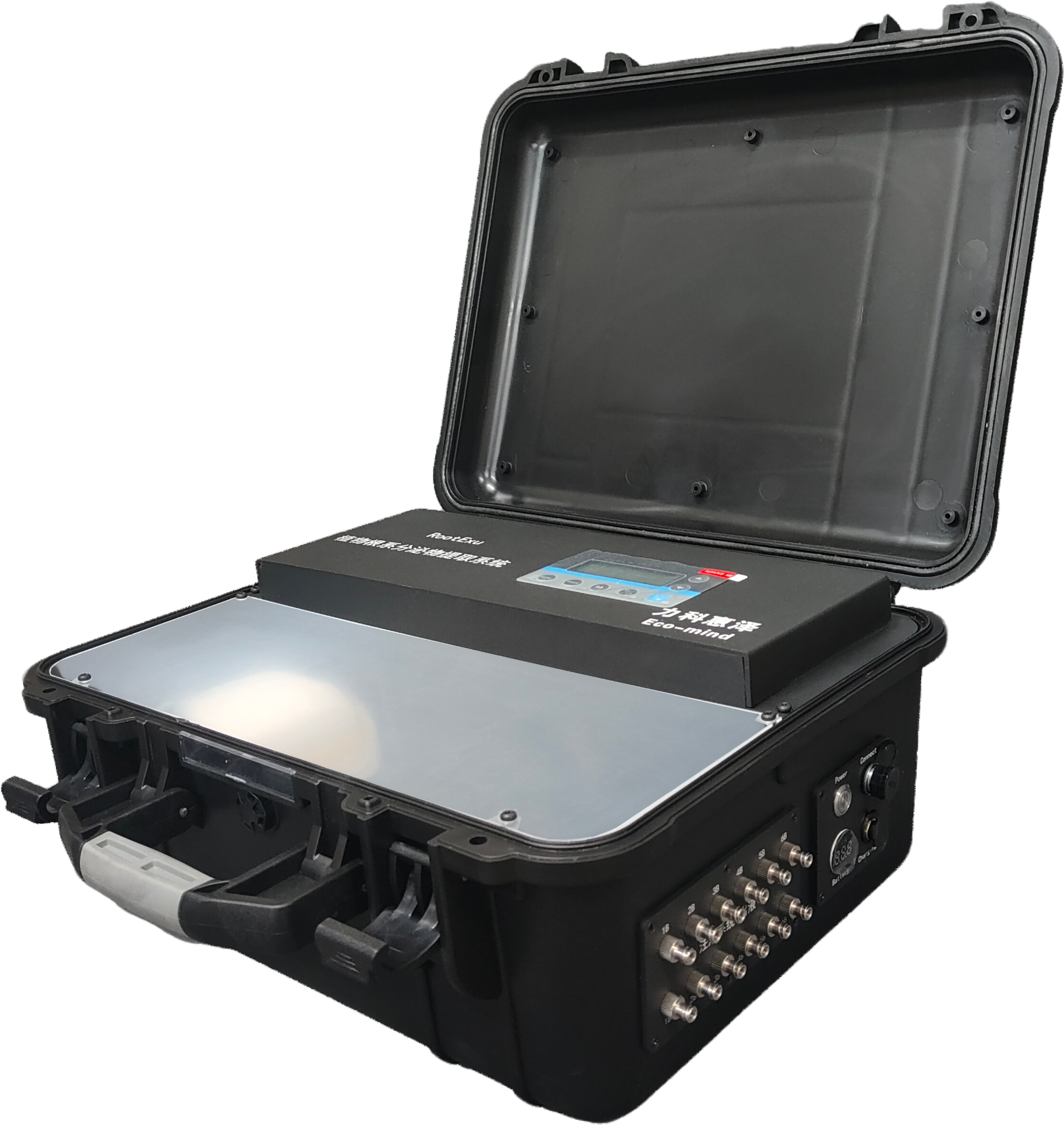

The LK-1700 RootExu Plant Root Exudate Automatic Extraction System is based on the vacuum negative pressure principle and equipped with a fully automated peristaltic pump, the LK-1700 RootExu system enables precise control of negative pressure intensity, duration, and culture solution volume, achieving efficient and accurate extraction operations. The system mainly consists of an injection host (with integrated peristaltic pump), nutrient solution storage bottle, extension tubes, extraction host (with integrated vacuum pump), rhizosphere exudate sampling device, and a battery-powered system. Integrated with a unified operation control system, it allows fully automated extraction of soil solutions and root exudate solutions, significantly improving convenience and efficiency. Additionally, the system is equipped with soil moisture, temperature, and electrical conductivity sensors, enabling simultaneous monitoring of surrounding soil environmental factors for comprehensive soil environment data. It is widely used in monitoring and research within agriculture, forestry, and ecological soil studies.
The LK-1700 RootExu Plant Root Exudate Automatic Extraction System is based on the vacuum negative pressure principle and equipped with a fully automated peristaltic pump, the LK-1700 RootExu system enables precise control of negative pressure intensity, duration, and culture solution volume, achieving efficient and accurate extraction operations. The system mainly consists of an injection host (with integrated peristaltic pump), nutrient solution storage bottle, extension tubes, extraction host (with integrated vacuum pump), rhizosphere exudate sampling device, and a battery-powered system. Integrated with a unified operation control system, it allows fully automated extraction of soil solutions and root exudate solutions, significantly improving convenience and efficiency. Additionally, the system is equipped with soil moisture, temperature, and electrical conductivity sensors, enabling simultaneous monitoring of surrounding soil environmental factors for comprehensive soil environment data. It is widely used in monitoring and research within agriculture, forestry, and ecological soil studies.
Key Features
Technical parameters
|
How it works |
Vacuum negative pressure). |
|
|
Liquid injection system |
Number of Channels: 6 - 12 channels (configurable). |
|
|
Peristaltic Pump: Features a 10-roller and integrated upper pressure structure design, resulting in lower fluid transmission pulsation, higher accuracy, and better inter-channel consistency. |
||
|
Liquid Flow Rate: User-defined injection rate (0.1-100 ml/min). The injection direction for each channel can be controlled via software, and the tubing pressure structure is elastically self-adaptive. |
||
|
Extraction system |

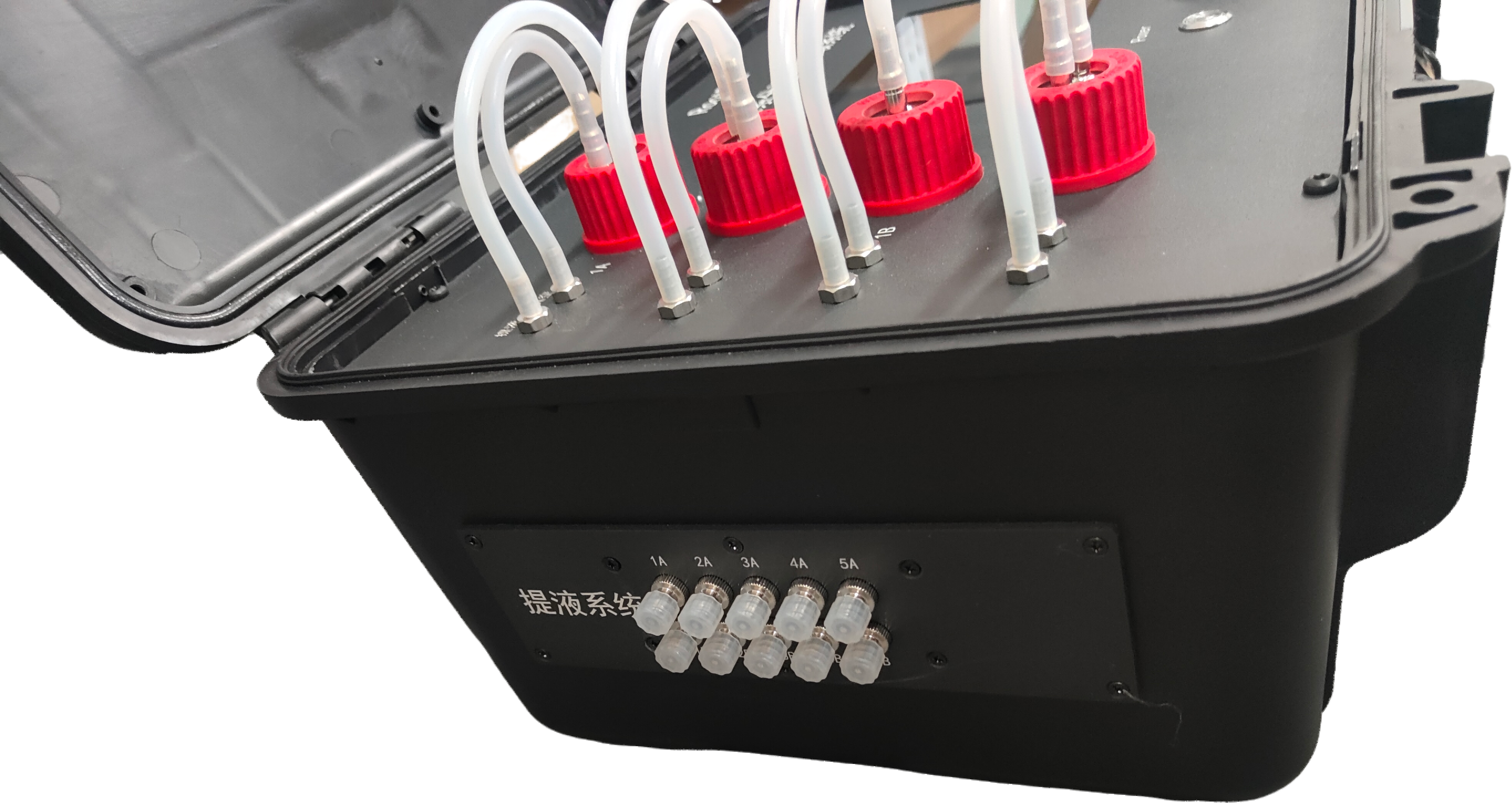

10 channels, divided into 2 groups, capable of simultaneously extracting two samples. Negative pressure range: 0-100 KPa. |
|
|
Soil temperature and humidity salt sensor |
Standard Length :2 m, extendable up to 8 m |
|
|
Soil moisture content |
Accuracy: Typical ± 0.01, Max ±≤ 0.03; Measuring Range: 0 - 100 % (saturated); Resolution: 0.001. |
|
|
Soil Electrical Conductivity |
Accuracy: ± 2.0 % or 0.02 s/m; Measuring Range: 0 - 1.5 s/m; Resolution: 0.001. |
|
|
Soil Temperature |
Accuracy: ± 0.2 °C; Measuring Range: -40 - 80 °C; Resolution: 0.1 °C. |
|
|
Sampling device |
Herbaceous Fine Root Exudates |
Growth Tube Length: ≤350 mm; Sampling Port Outer Diameter: ≤4 mm; Sampling Port Spacing: ≤75 mm. |
|
Woody Rhizosphere Exudates |
Extraction Section Length: ≥10 cm Pore Size: ≤0.2 μm |
|
|
Root Culture Bottle |
Capacity: ≥100 ml (specifications optional) |
|
|
Test Tube Collection Bottle |
Liquid Storage Capacity: ≥25 ml Dual-connector cap |
|
|
Nutrient Solution Storage Bottle |
Volume≥ 2 L |
|
|
Power Supply |
Built-in lithium battery, ensures operation time >5 h |
|
|
Operating Voltage |
220V AC or 12-24V DC |
|
|
Operation Modes |
Manual control to start extraction; adjustable nutrient solution dosage with one-touch automatic liquid addition. Customizable extraction time. Adjustable exudate collection volume with one-touch collection of exudate solution. |
|
|
Control System |
LCD display with Chinese interface. Synchronizes system time, sets collection tasks, and real-time acquisition and storage of soil temperature, moisture, and salinity data. Data can be saved in text format with a storage capacity of ≥32GB. |
|
|
Operating Environment |
Temperature: 0-40°C, Humidity: <80% |
|
Standard Configuration
Manufactured : Eco-mind, China
