The LK-1900 Root Flatbed Scanning System acquires high-definition root images by scanning excavated root samples. It enables simultaneous scanning of multiple cultivation boxes and, combined with professional analysis software, extracts critical root parameters. This provides essential research data on subsurface root growth for studies in root ecology, stress resistance, and plant responses to environmental pressures.
Key Features
Technical Parameters
|
Scanning Type |
Flatbed color root scanner |
|
Maximum Scanning Area |
8″×10″ (203×254 mm) |
|
Sensor |
CCD |
|
Optical Resolution |
6400 DPI |
|
Scanning Subject |
Excavated and cleaned roots |
|
Scanning Method |
Fixed roots, moving scan head |
|
Dimensions |
308 × 503 × 152.5 mm |
|
Scanning Light Source |
LED; Color Depth: 48-bit |
|
Power Supply |
AC 220-240 V, 50/60 Hz |
|
Operating Environment |
5-35°C; 10-80% RH (non-condensing) |
|
Root Tray |
Material: 2 mm transparent acrylic |
|
Output Parameters |
Root tip count, total root length, diameter, volume, surface area, projected area, branching points, average direction, etc. |
|
Protection Rating |
Splash-proof and dust-resistant |

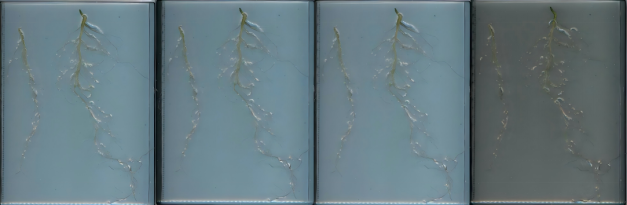

Scanning Results Demonstration

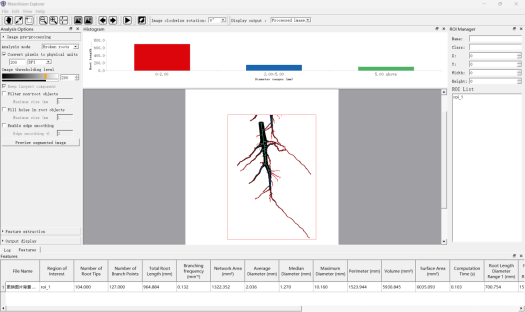

Software Analysis Interface

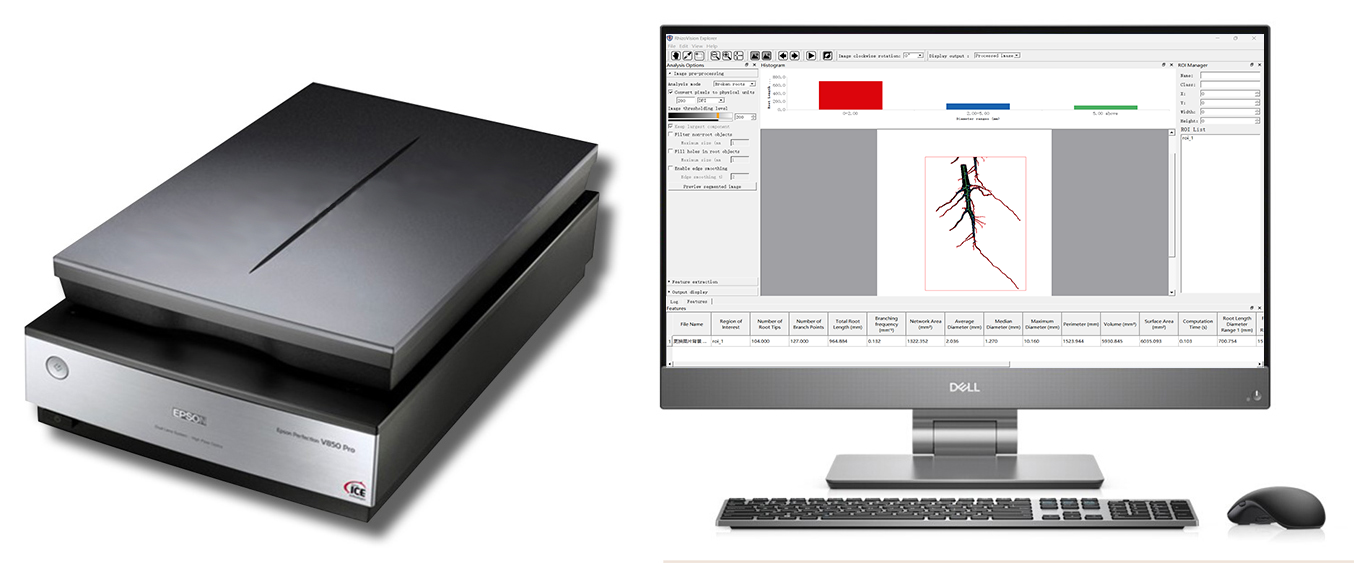

Standard Configuration
Manufactured : Eco-mind, China
