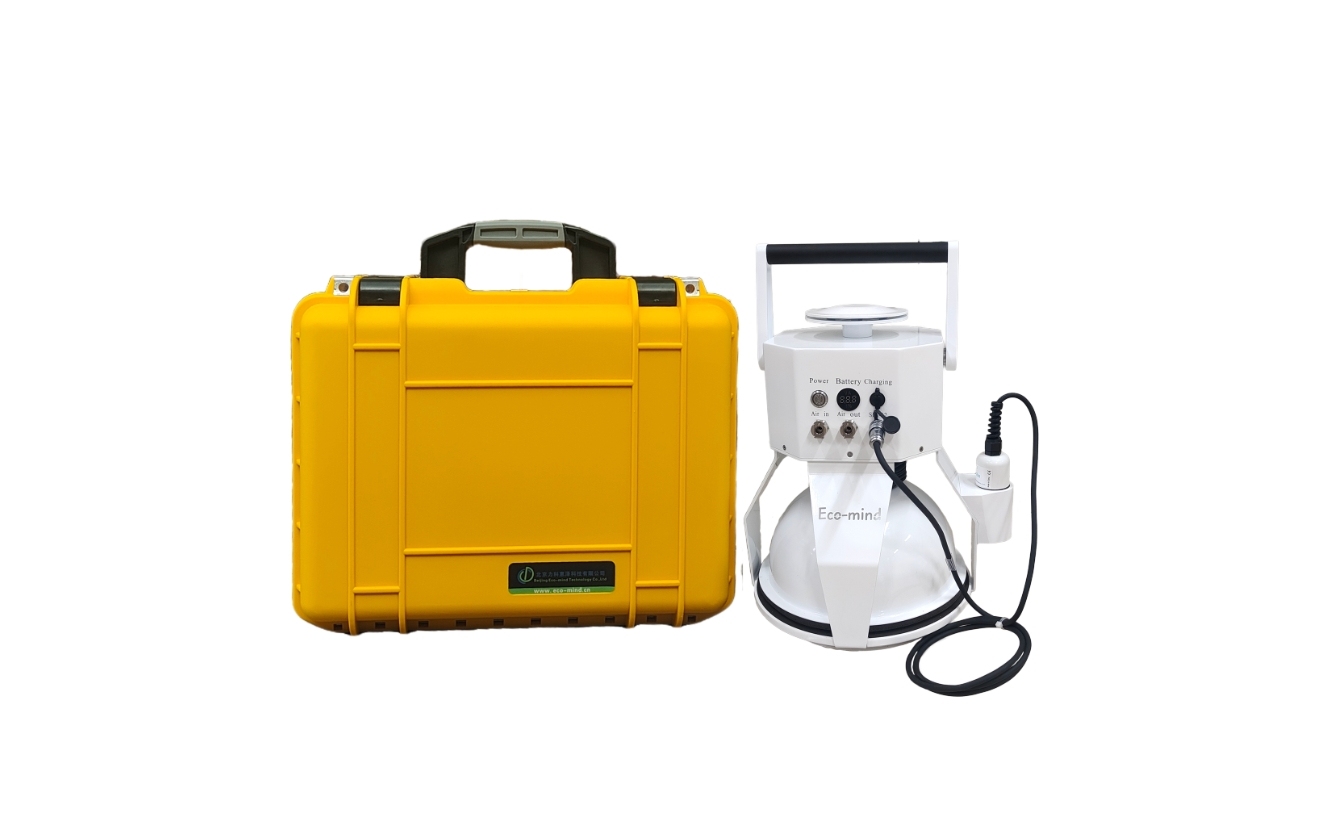

LK-2400 Portable CO2/N2O Flux Measurement System

The LK-2400 Portable CO₂ and N₂O Flux Measurement System utilizes Mid-Infrared Absorption Spectroscopy (MIRAS) technology. By leveraging the strong absorption characteristics of target gases in the mid-infrared (MIR) band, it analyzes gas concentration information, achieving ultra-high sensitivity and precision monitoring within seconds. The system is paired with an automatic soil flux chamber for in-situ measurement of soil respiration rates. It can also be connected to static chambers, mobile water surface flux chambers, and other accessories to meet various measurement scenario requirements.

Key Features

• Mid-Infrared Laser Absorption Spectroscopy (MIRAS)
• Rapid Response:Monitors target gases within seconds at a 1 Hz measurement frequency.
• High Frequency Measurement:Up to 10 Hz (standard configuration is 1 Hz).
• High-Precision Water Vapor Measurement:Directly reports CO₂ and N₂O concentrations in dry mole fraction, eliminating the need for drying or data correction.
• Stable and Accurate Measurements:Built-in automatic calibration and zeroing functions.
• High Sensitivity and Ultra-Low Drift:Ultra-high stability and accuracy with long-term error < 0.1%.
• Portability and Low Power Consumption:Compact device with a built-in battery, power consumption of only 15 W under standard conditions, allowing for up to 6 hours of continuous operation, suitable for field and mobile applications.

Technical Parameters

Optional Gas Species and Measurement Accuracy

• Methane (CH₄), Ethane (C₂H₆) (LDS)
• Carbon Dioxide (CO₂), Nitrous Oxide (N₂O)
• Nitrous Oxide (N₂O), Carbon Monoxide (CO)
• Carbonyl Sulfide (OCS), Carbon Dioxide (CO₂)
• Formaldehyde (HCHO)
• Ethylene Oxide (EtO)
• Propane (C₃H₈), Ethane (C₂H₆), Methane (CH₄)
• Acetylene (C₂H₂)
• Benzene (C₆H₆)

Optional Chamber Accessories

SFC-20 Automatic Soil Flux Chamber

• Covers the soil surface to form a sealed space and periodically collects gas samples from within the chamber.
• Equipped with a soil three-parameter sensor and soil collar.
• Wi-Fi connectivity for viewing real-time calculated flux results.
• Designed specifically for field research work, easy to carry.

WSF-20 Water Surface Flux Chamber

• Mobile operation capable of multi-point patrol measurements.
• Circular float design allows it to float on the water surface and impede water flow.
• Integrated float design is lightweight, highly buoyant, robust, and impact-resistant.
• Simple installation, flexible combination and reconfiguration; top features anti-slip design for safety and stability.
• Resistant to freezing, UV exposure, gasoline, oil, acids, and alkalis; environmentally friendly and non-polluting.
• Float Dimensions:Inner Diameter 320 mm, Outer Diameter 720 mm, Height 220 mm.

SNC-50 Community Static Photosynthesis Chamber – Ecosystem Net Ecosystem Exchange (NEE) Measurement

• Automatically controls chamber opening/closing, meeting long-term continuous NEE measurement needs.
• Flux calculation software allows setting start/stop times and cycles for the automation.
• Fully open convective design allows complete gas exchange with the environment when open.
• Solar-powered operation suitable for long-term field use.

Automatic Open-Close Static Chamber

• Automatically controls chamber opening/closing, meeting long-term continuous NEE measurement needs.
• Flux calculation software allows setting start/stop times and cycles for the automation.
• Fully open convective design allows complete gas exchange with the environment when open.
• Solar-powered operation suitable for long-term field use.

SMC Intelligent Multi-Channel Control System

• Multi-Channel Monitoring:Connects multiple measurement chambers simultaneously for long-term, continuous monitoring of soil greenhouse gas fluxes at multiple points.
• Flexible Connectivity:Can be flexibly connected to various gas analyzers.
• Long-Term Unattended Monitoring:Precise, automatic, repetitive measurements; no need for field attendance.

SFL-20 Long-Term Soil Flux Chamber

• Special dynamic pressure balance design better simulates real environmental conditions.
• Enables long-term, continuous operation.
• Compact structure, small size, lightweight, and portable.
• Curved design with good waterproof and dustproof performance, suitable for field measurements.
• Aviation connectors for quick, safe, and accurate connection.
• Control method: Multi-channel system control (included).

Subsurface Profile Gas Sampling Device

• Technology Principle: Semi-permeable membrane gas sampling technology.
• Dimensions: 500 mm (L) × 6 (customizable).
• Material: Semi-permeable membrane, aluminum alloy support.
• Control Method: Master Controller.
• Sensor: Temperature sensor.

Manufactured : Eco-mind, China
