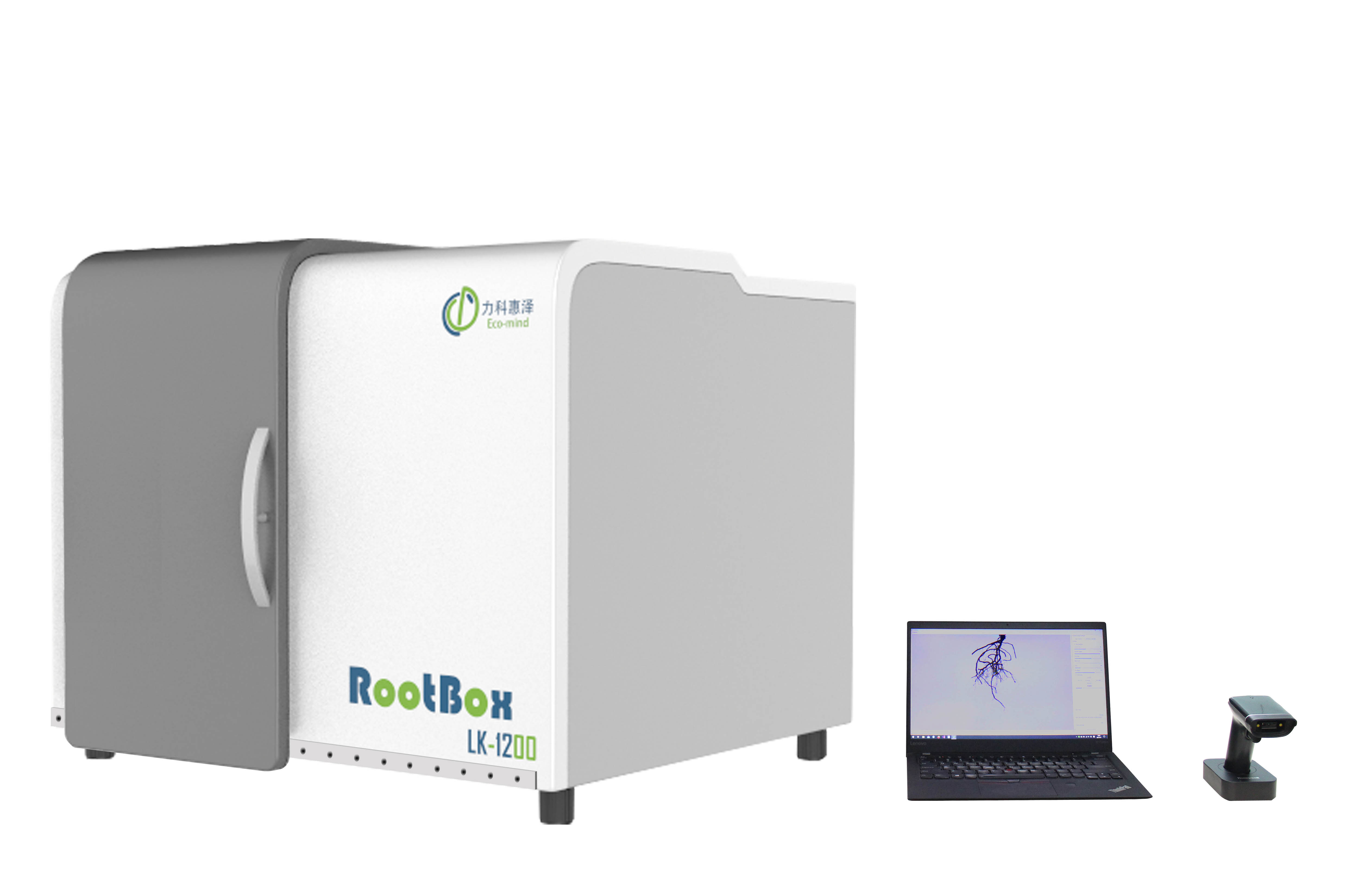

The LK-1200 RootScan Benchtop Root System Analyzer is specifically designed for rotary imaging of washed root samples, enabling continuous high-throughput 2D imaging and analysis of plant root systems. Capable of measuring hundreds of plant samples daily, the system performs continuous multi-angle rotational imaging of roots as needed. Integrated with professional control and image analysis software, it measures parameters such as total root length, diameter, surface area, biomass, and root topological architecture. Additionally, the instrument is equipped with a barcode scanner for automatic image naming, significantly reducing measurement time. Suitable for a wide range of applications, it is widely used in research and teaching in agronomy, biology, ecology, crop science, horticulture, and related fields.

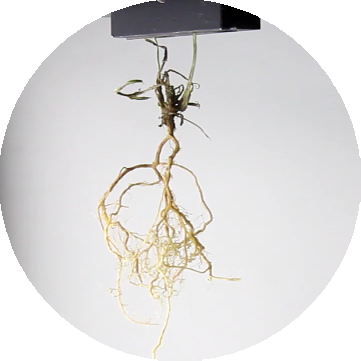

The imaging system of the LK-1200 RootScan is a fixed high-definition setup. As shown in the diagram, parameters such as resolution, imaging area, and working distance can be optimized according to user requirements. Users can place washed root samples directly onto the automatic rotating stage, where the integrated barcode scanner automatically identifies and records sample names and IDs. Professional root analysis software is then used to process and evaluate the root images.
Key Features
Technical Parameters
|
Enclosure |
Aluminum profile; 803×573×683 mm Power supply: AC 220V, internal 24V power supply, cooling fan |
|
Light Source |
LED light source, illumination area 60×50 cm |
|
Imaging Area |
470×551 mm |
|
Camera Movement Range |
200 mm linear guide rail |
|
Camera Parameters |
1. Interface: USB 3.0 2. Interface speed: 3.0 Gbps 3. Sensor type: CMOS 4. Max. frame rate: 19.5 FPS 5. Resolution (W×H): 5536×3692 px 6. Sensor size: 13.286 × 8.861 mm 7. Shutter type: Rolling shutter 8. Sensor size: 1 inch 9. Pixels: 20.4 Megapixels 10. Pixel size: 2.4 μm 11. A/D conversion: 12-bit 12. Color depth: 12-bit 13. Pixel binning function: Increases frame rate 14. Pixel binning factor: 2 15. Exposure time (min-max): 0.053-814 ms 16. Power consumption: 3-5 W 17. Internal cache: 64 MB 18. Ingress protection: IP30 19. Operating conditions: 0°C-55°C, 20%-80% RH 20. Lens mount: C-mount 21. Other features: Pre-calibrated, plug-and-play Interface: USB 3.0; |
|
Camera lens |
1. Focal length: 25 mm 2. Resolution: 10 pixel 3. Aperture range: F2.0-22 4. Back focal length: 17 mm 5. Minimum object distance: 0.15 m 6. Filter thread: UV 46.0×0.75 |
|
Auto Barcode Scanner |
1. Connection: Wireless 2. Transmission type: 2.4 GHz 3. Decoding type: 2D 4. Light source: Imaging 5. Scanning precision: ≥4 mil 6. Battery capacity: ≥1500 mAh |
|

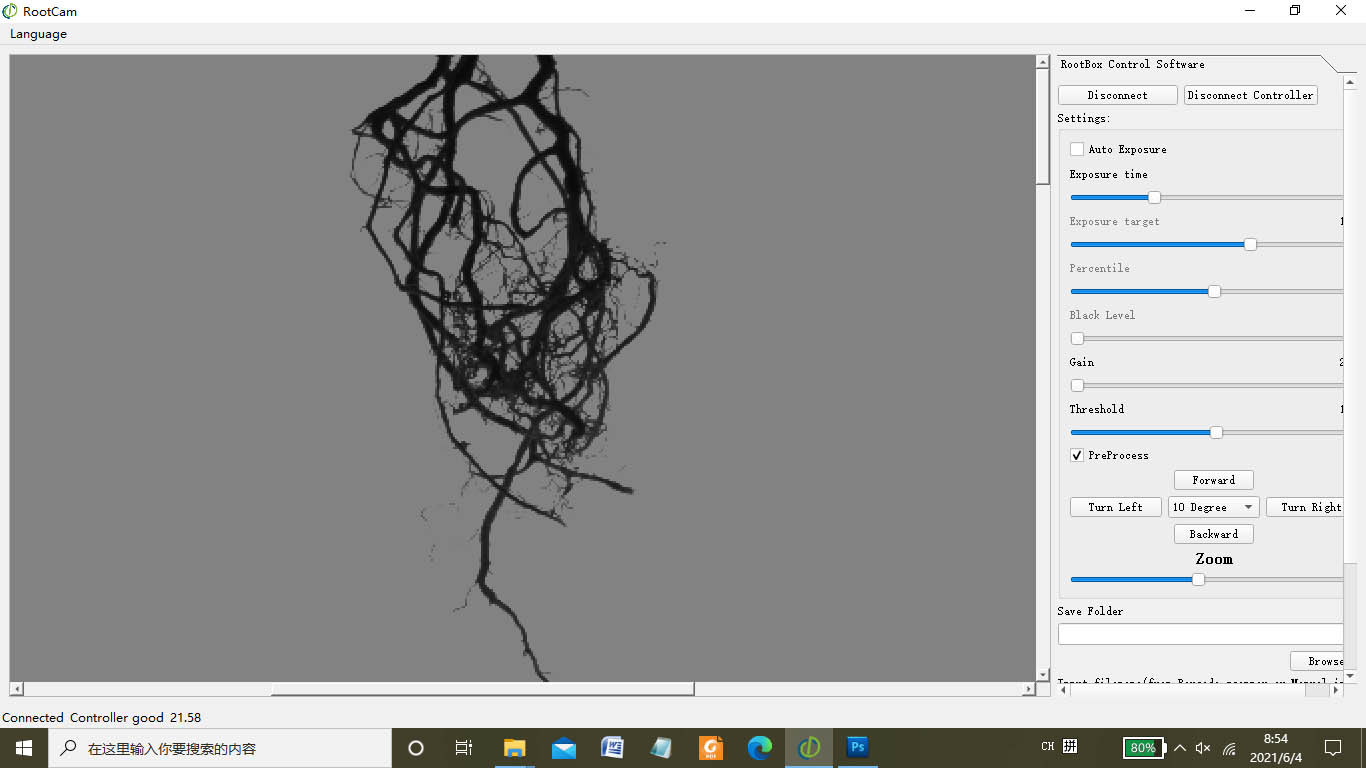

RootBox Control Software |
1. Interface: Windows-based 2. Functions: Control camera exposure time, auto-adjust image contrast, control barcode scanner for image naming, control rotation stage angle, control camera rail position, select image storage location, and save images |
|

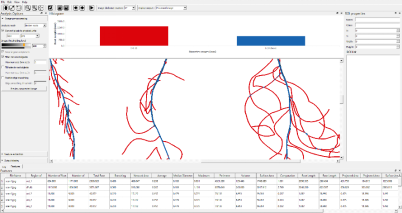

2D Root Analysis Software |
Provides dedicated root image analysis software capable of binarizing images and analyzing over 20 root parameters including length, diameter, area, volume, and node count. |
|
Control & Storage System |
1. Graphics card type: discrete graphics card 2. Memory capacity: ≥32GB 3. USB ports: ≥5 4. Hard disk capacity: ≥1T |
|
Root Image Analysis Software The following analysis software programs are all capable of analyzing images of washed plant root systems: DIRT、Root Trace、RootNav、SmartRoot、RhizoChamberMonitor、WinRhizo Tron |
 |
Standard Configuration
Manufactured : Eco-mind, China
