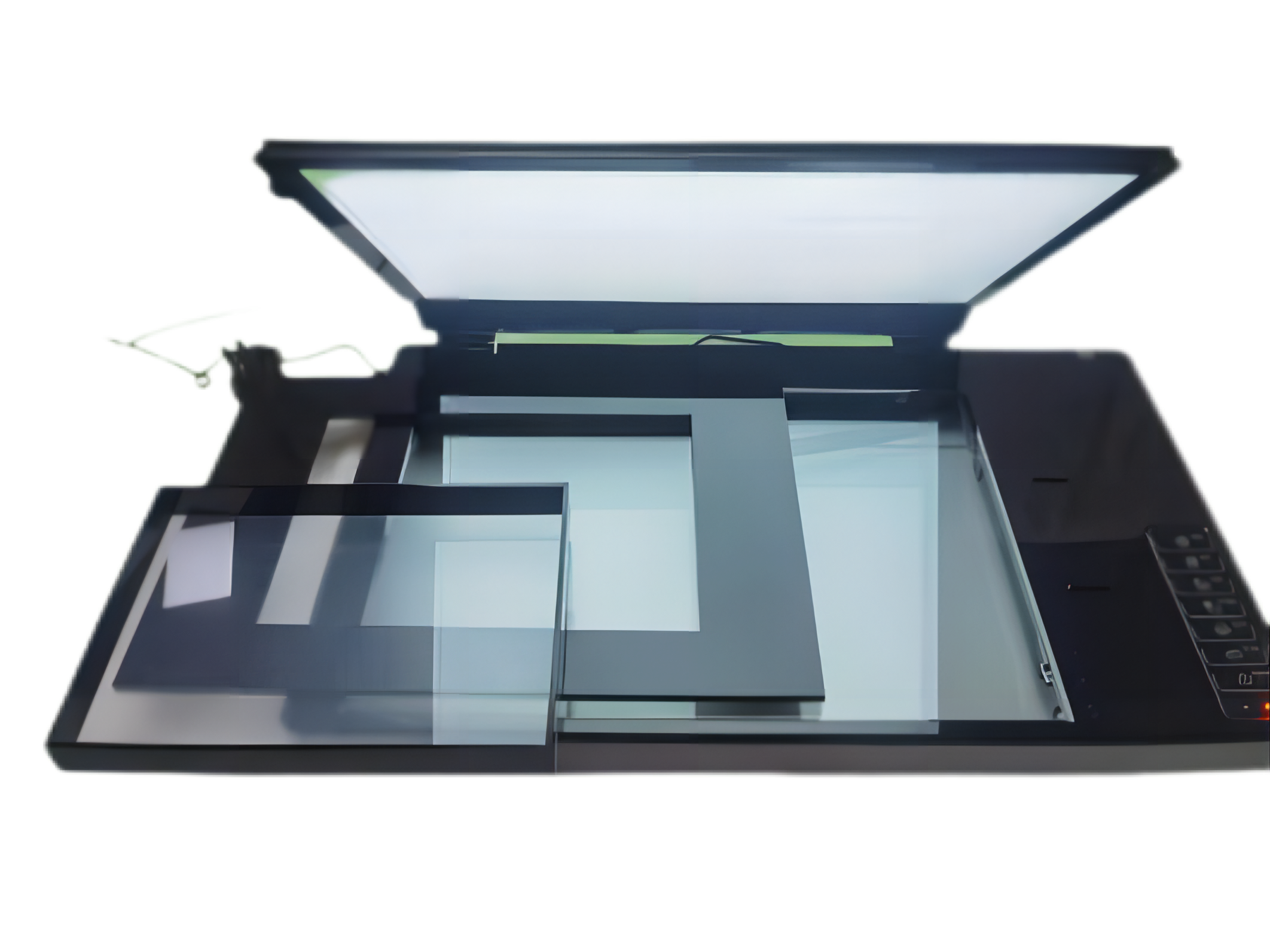

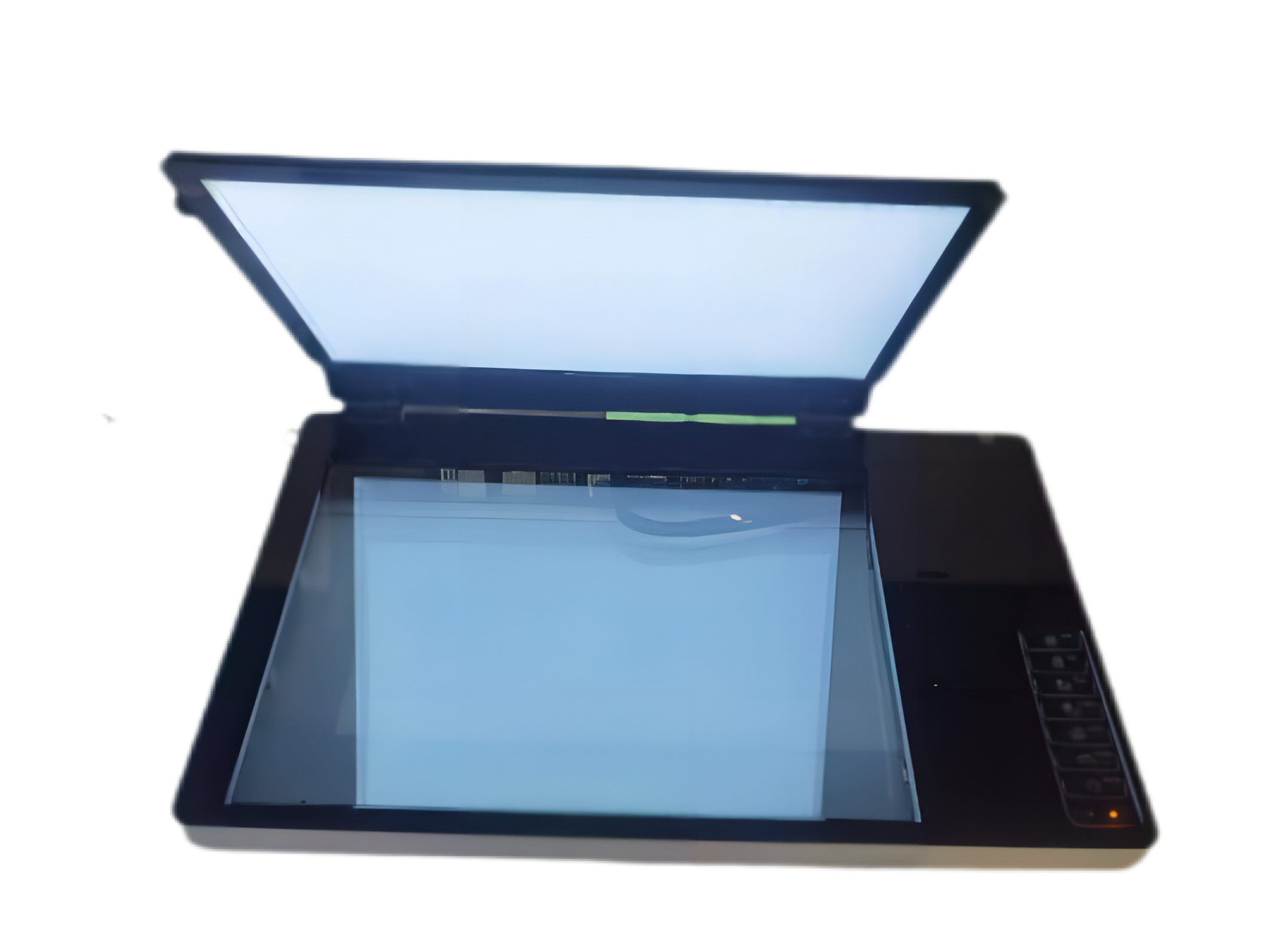

The LK-1910 Dual-Light Source Plant Root Analyzer is a device specifically designed for capturing color images of plant roots and conducting shadowless scanning. It boasts short preheat time, fast scanning speed, and the ability to save color images with complete root phenotypic characteristics, and supports A4-sized scanning.
Main Features
- Captures color images of plant roots without shadows
- Short preheat time and fast scanning speed
- Color images preserve complete root phenotypic characteristics, facilitating further analysis
- A4 size capability
System Composition
- Backlight Host Unit *1
- High-Translucency Root Tray (with 0.1mm scale) *8
- Root Tray Limiter
- Root Recognition Software iRoot-2024
- Tablet Scanning Training Set
Technical Specifications
- Image Sensor: CCD
- Resolution: 4800dpi(H)×9600dpi(V)
- Color Depth: 48bit
- Light Sources:
Bottom: LED, white light, zero preheat time
Top: LED, white light, smart touch control, stepless dimming, brightness memory
Color, Color 48bit
Grayscale, Grayscale 16bit
256 Colors/256 Custom Colors
Web/Internet Colors, Black & White
- Scanning Area: 216mm×297mm (8.5"×11.7")
- Scanning Speeds:
6 seconds/A4/RGB/300dpi
12 seconds/A4/RGB/600dpi
85 seconds/A4/RGB/1200dpi
350 seconds/A4/RGB/2400dpi
700 seconds/A4/RGB/4800dpi
- Output File Formats: JPEG, BMP, TIFF
- Driver: Standard TWAIN
- Interface Type: USB 2.0
- Shortcut Keys: OCR, PDF, EMAIL, WEB
- Operating Systems: Windows XP/Win7/Win8/Win 10/Mac OS X 10.11
- Power: 18W
- Operating Environment: Temperature 10°C~40°C, Humidity 20%~85%RH
- Dimensions: 443.5mm(L)×278.6mm(W)×54mm(H)
- Net Weight: 2.14kg
- Bundled Software:
Quick Image Scanning and Processing Software
MAC Driver
Image Acquisition and Management Tool Software
Adobe Acrobat Reader for PDF Document Viewing
High-Translucency Root Tray：
- 4cm×19.4cm, 5mm thickness (with 0.1mm scale)
- High-translucency acrylic root tray: 19.9cm×14.9cm, 5mm thickness (with 0.1mm scale)
- Root trays and limiters can be customized based on needs
- Customizable circular limiters to accommodate petri dishes

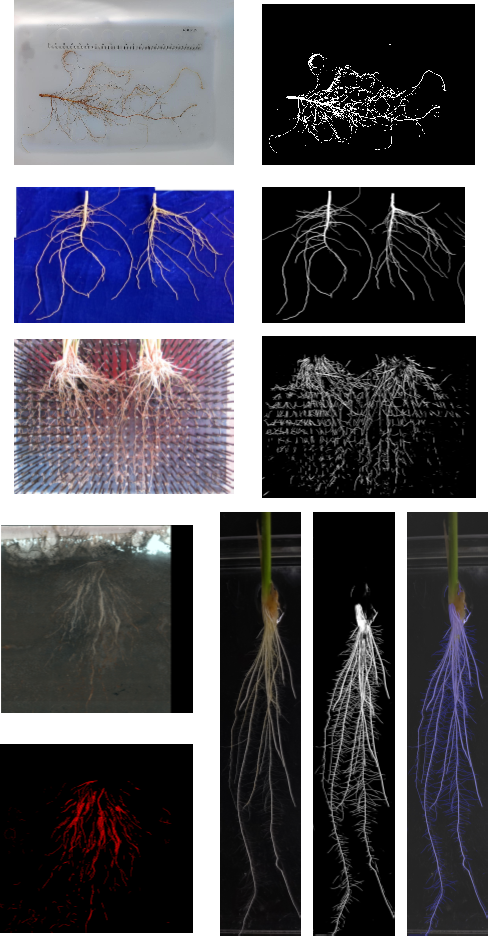

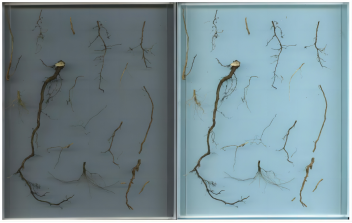

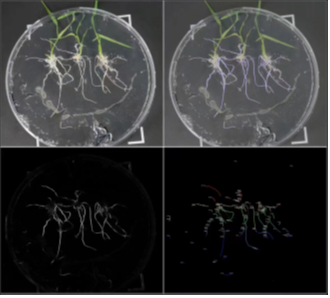

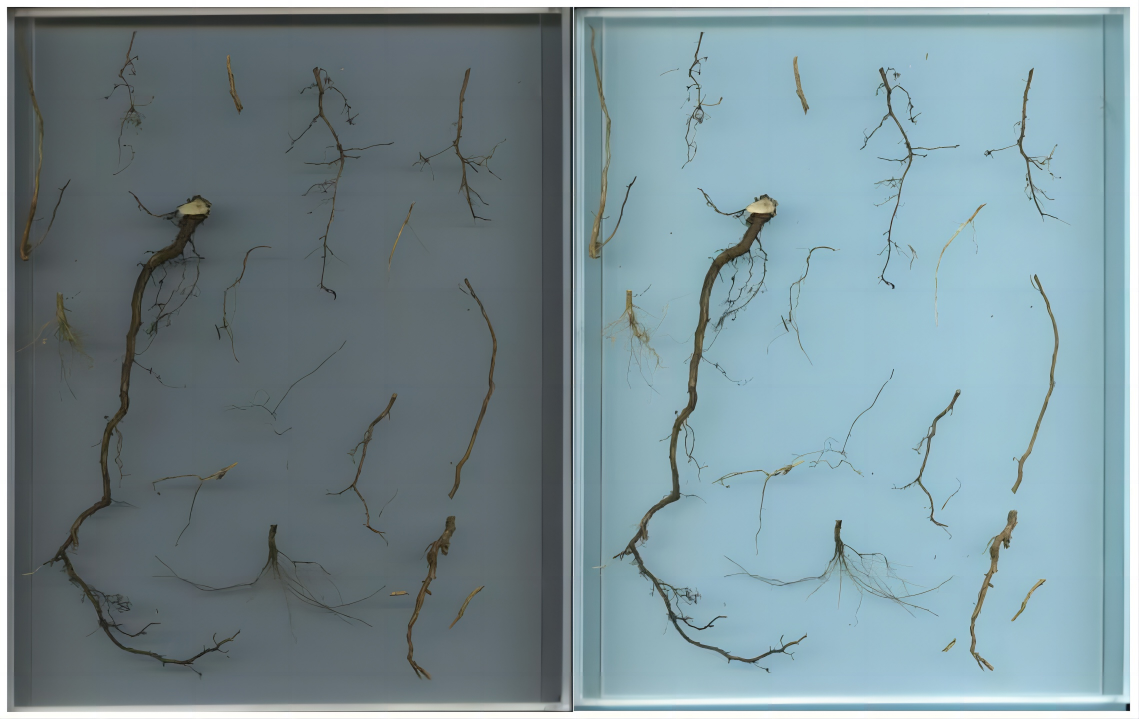

Application Cases：
