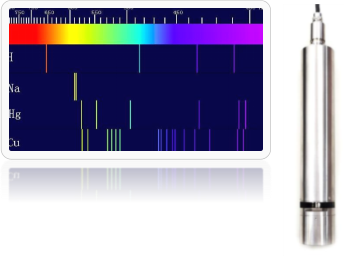

The LK-4300 In-situ Full Spectrum Water Quality Online Sensor is a rapid COD measurement system designed for water quality detection and monitoring in industries such as water conservancy and environmental protection.
The LK-4300 In-situ Full Spectrum Water Quality Online Sensor is a rapid COD measurement system designed for water quality detection and monitoring in industries such as water conservancy and environmental protection.
Key Features:
Measurement Parameters:
|
Parameter |
Measurement Range |
Accuracy |
|
COD |
0 - 200 mg/L |
±5% of standard solution |
|
TOC(calculated from COD) |
0 - 80 mg/L |
±5% of standard solution |
|
BOD(calculated from COD) |
0 - 40 mg/L |
±5% of standard solution |
|
Turbidity |
0-500 NTU |
0.5 NTUor ±5% of standard solution, whichever is greater |
|
NO3-N |
0-5 mg/L |
±5% of standard solution |
Technical Specifications
|
Host |
Parameter |
|
Size |
D 68mm * L 487mm |
|
Weight |
3.5 KG |
|
Main Material |
316 Stainless Steel, PVC (Cable) |
|
Waterproof Rating |
IP68/NEMA6P |
|
Data Output Format |
RS 485 |
|
Power Supply Information |
DC 15-24V |
|
Storage Temperature |
-10～+50 ℃ |
|
Operating Environment Temperature |
-5～50 ℃ |
|
Pressure Range |
≤50bar |
|
Cable |
10m standard cable, other lengths available upon request |
Application
Can be applied in water quality monitoring stations, floating boats, or fixed installations. Water quality monitoring stations flexibly configure spectral and multi-parameter water quality monitoring sensors based on actual monitoring parameter requirements, enabling 24-hour continuous water quality monitoring. Data is actively and real-time uploaded to a cloud server database via GPRS, allowing users to receive data and water quality pollution alerts through computers or smartphones. The system can also be configured with pump and valve control units as needed to meet monitoring and control requirements.
